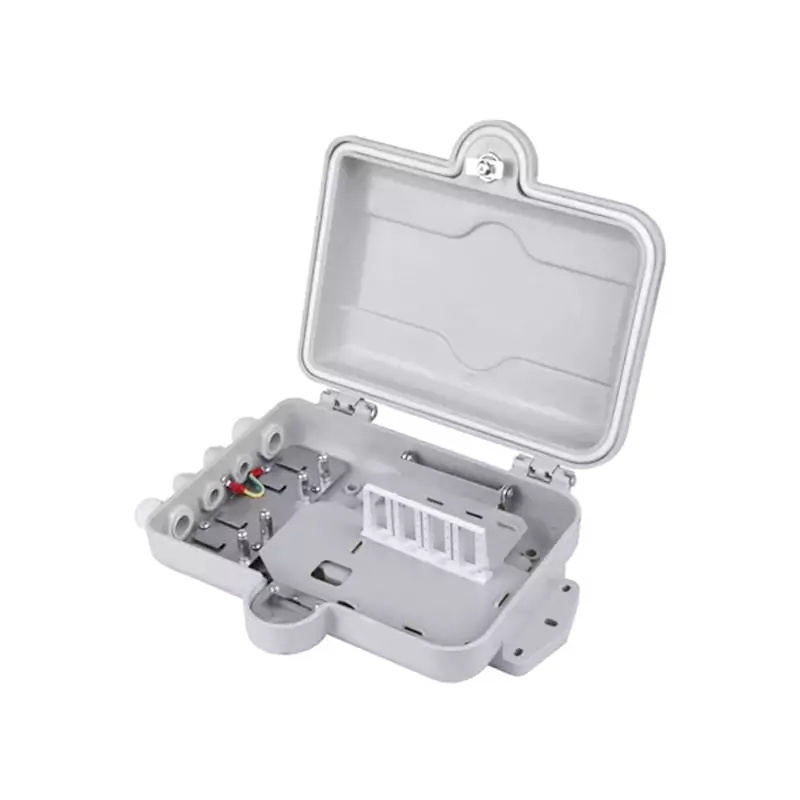

16-Core SMC Fiber Distribution Box
16-core SMC Fiber Distribution Box HJ-GF-KCW-16A adopts a separate fusion-splicing and distribution structure, with fusion splicing and fiber distribution functions.
Product Features
Meets the requirements for fusion splicing, distribution and protection connection of 1~2 optical cables (Φ8~12mm) and 16 distribution pigtails (or drop cables) at the terminal;
Maximum Capacity: 16 cores; Protection Class: IP55;
Adapters/Pigtails: 16-core termination with fiber optic adapters is available; SC and FC adapters are optional;
Equipped with a reliable fixing device for optical cables and drop cables;
The fiber distribution box adopts a hinged flap structure, enabling convenient and quick fiber fusion splicing and termination operations;
The box body adopts a sealed structure, supplemented by an optional mechanical lock for fixation, making the box easy to open and close;
Built-in fiber fusion protection device and fiber adapter fixing device;
Technical Parameters
| Model | Product Dimensions | Weight | Material | Cable Entry Holes |
| HJ-GF-KCW-16A | 310*240*85mm | 1.65kg | SMC Composite Material | 2 Inlets & 2 Outlets |
| Product Configuration List | |||||
| Serial No. | Name | Specification | Quantity | Unit | Remarks |
| 1 | Cabinet Body | 310*240*85mm | 1 | Set | Including internal structural components |
| 2 | Bracket | Flip-type | 1 | Set | |
| 3 | Adapter | SC or FC | 16 | Piece | |
| 4 | Pigtail | Single-core SC | 16 | Piece | Optional (0.9mm pigtail, 2.0mm pigtail, drop cable optional) |
| 5 | Fiber Splicing Tray Device | 12-core | 1 | Block | Maximum 1 block can be configured |
| 6 | Heat Shrinkable Tube | Single-core heat shrinkable tube | 16 | Piece | |
| 7 | Fiber Protection Sleeve | 0.5 | Meter | ||
| 8 | Accessories | Installation accessories | 1 | Set | Standard configuration |
