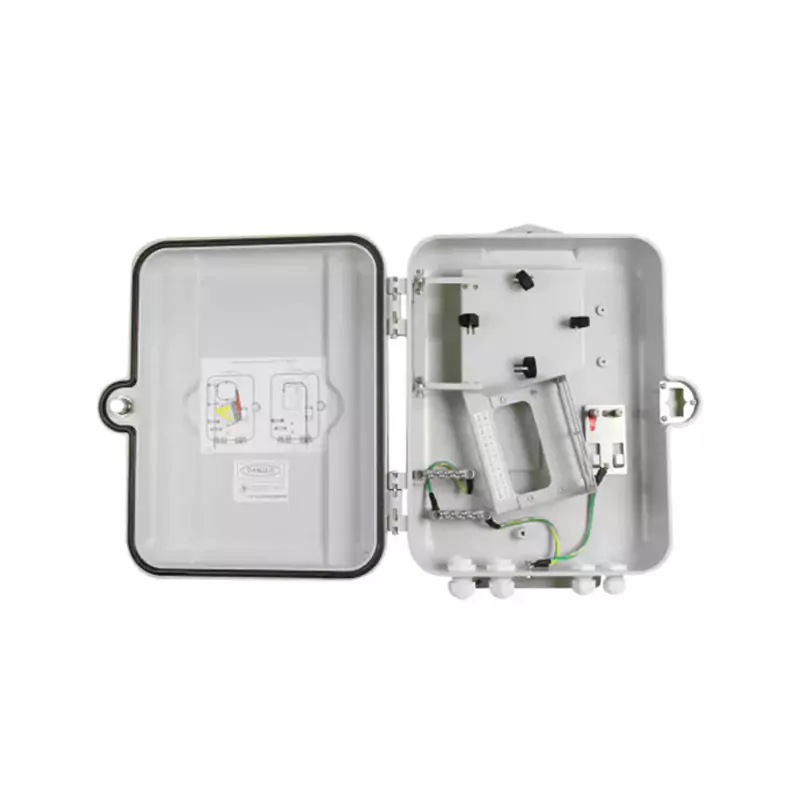

24-Core SMC Fiber Distribution Box
24-core SMC Fiber Distribution Box HJ-GF-KCW-24B adopts a separate fusion-splicing and distribution structure, with fusion splicing and fiber distribution functions.
Product Features
Meets the requirements for splicing, distribution and protection of 1~2 optical cables (Φ8~12mm) and terminals of 24 distribution pigtails (or drop cables);
Maximum Capacity: 24 cores; Protection Class: IP55;
Adapters/Pigtails: Capable of installing 24-core fiber optic adapters for termination; SC and FC adapters are optional;
Equipped with a reliable fixing device for optical cables and drop cables;
The fiber distribution box adopts a hinged flap structure, enabling convenient and quick fiber fusion splicing and termination operations;
The box body adopts a sealed structure, supplemented by an optional mechanical lock for fixation, making the box easy to open and close;
Built-in fiber fusion protection device and fiber adapter fixing device;
Technical Parameters
| Model | Product Dimensions | Weight | Material | Cable Inlet/Outlet |
| HJ-GF-KCW-24B | 420*350*115mm | 3.6kg | SMC Composite Material | 2 Inlets & 2 Outlets |
| Product Configuration Table | |||||
| Serial No. | Name | Specification | Quantity | Unit | Remarks |
| 1 | Cabinet | 420*350*115mm | 1 | Set | Including internal structural components |
| 2 | Bracket | Flip-type | 1 | Set | |
| 3 | Adapter | SC or FC | 24 | Piece | |
| 4 | Pigtail | Single-core SC | 24 | Piece | Optional (0.9mm pigtail, 2.0mm pigtail, drop cable available) |
| 5 | Fiber Splicing Tray Device | 12-core | 2 | Block | Maximum 1 block configurable |
| 6 | Heat Shrink Tube | Single-core heat shrink tube | 24 | Piece | |
| 7 | Fiber Protection Sleeve | 0.5 | Meter | ||
| 8 | Accessories | Installation accessories | 1 | Set | Standard configuration |
