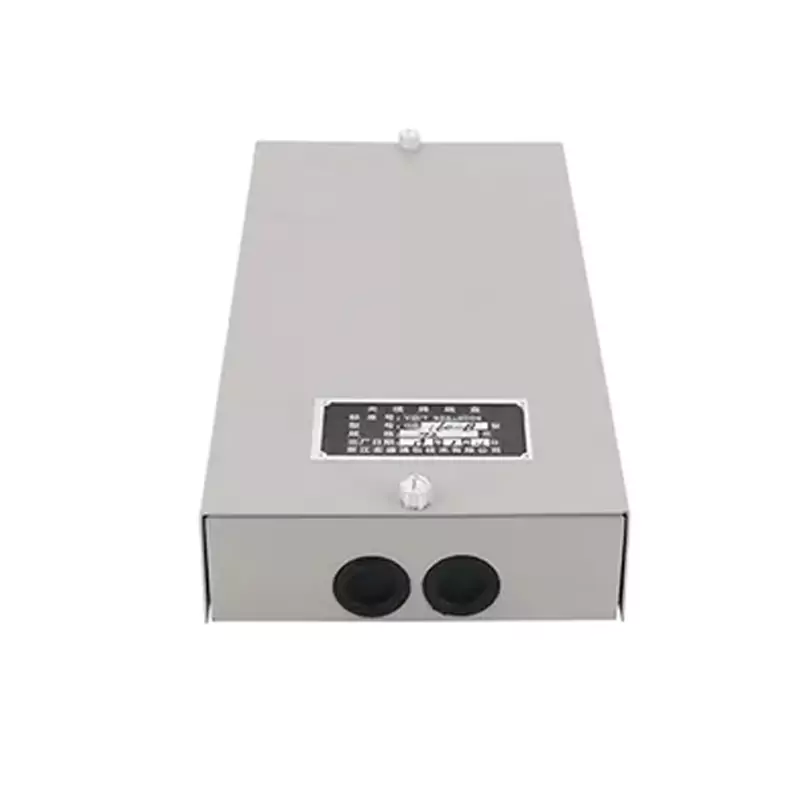

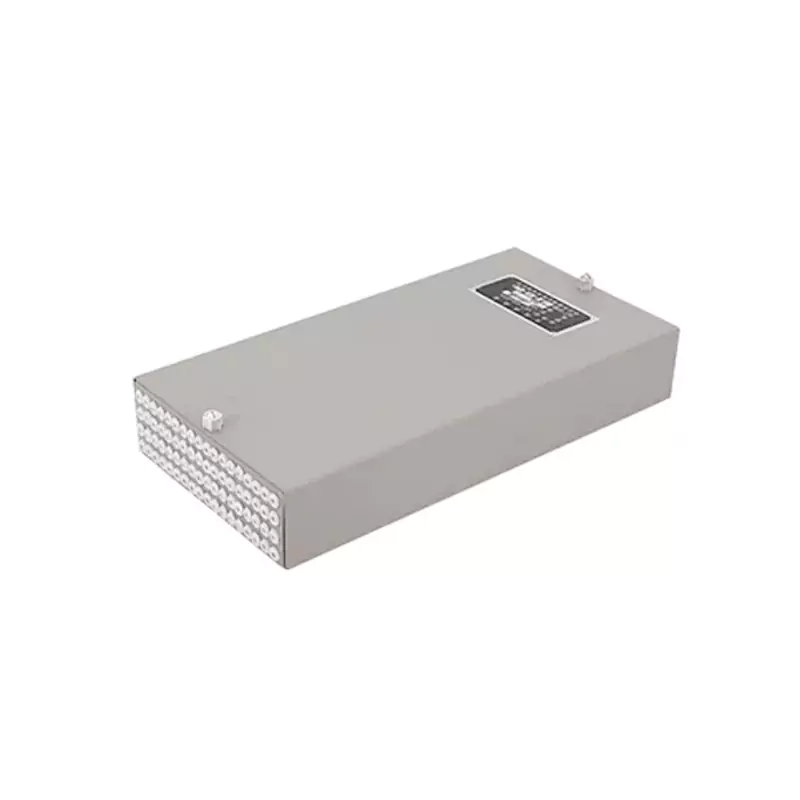

Metal Termination Box
Optical Cable Termination Box series products are auxiliary equipment for terminal distribution in optical fiber transmission communication networks. They are suitable for direct and branch splicing of indoor or outdoor optical cables and protect optical fiber joints. Optical Cable Termination Boxes are mainly used for fixing optical cable terminations, fusion splicing of optical cables and pigtails, and storage and protection of residual fibers.
Product Features
Suitable for terminal protection of single-core optical fiber cables;
Easy to operate, can be installed on the wall of equipment rooms or fixed in cabinets with brackets;
Used for splicing and distribution between outdoor optical cables and pigtails of switching equipment, equipped with a reliable grounding protection device;
Capable of installing SC and FC pigtails;
Can meet the termination splicing needs of Φ8～18 optical cables;
Technical Parameters
| Box Material | Cold-rolled Steel Plate | Overall Dimensions (mm) | 300×150×50 | ||||||
| Fiber Tray Capacity | 72 Cores | Weight (kg) | |||||||
| Standard Accessories | |||||||||
| Serial No. | Name | Unit | Quantity | Serial No. | Name | Unit | Quantity | ||
| 1 | Shell | Set | 1 | 6 | Optical Cable Fixing Device | Set | 2 | ||
| 2 | Nylon Cable Tie | Piece | 4 | 7 | Rubber Dust Ring | Piece | 2 | ||
| 3 | Self-tapping Screw | Piece | 2 | 8 | |||||
| 4 | Plastic Expansion Tube | Piece | 2 | 9 | |||||
| 5 | Fiber Tray (Including Cover Plate) | Sheet | 2 | 10 | |||||
| Optional Accessories | |||||||||
| Serial No. | Name | Unit | Quantity | Serial No. | Name | Unit | Quantity | ||
| 1 | SC Pigtail | Strip | As Required | ||||||
| 2 | FC Pigtail | Strip | As Required | ||||||
