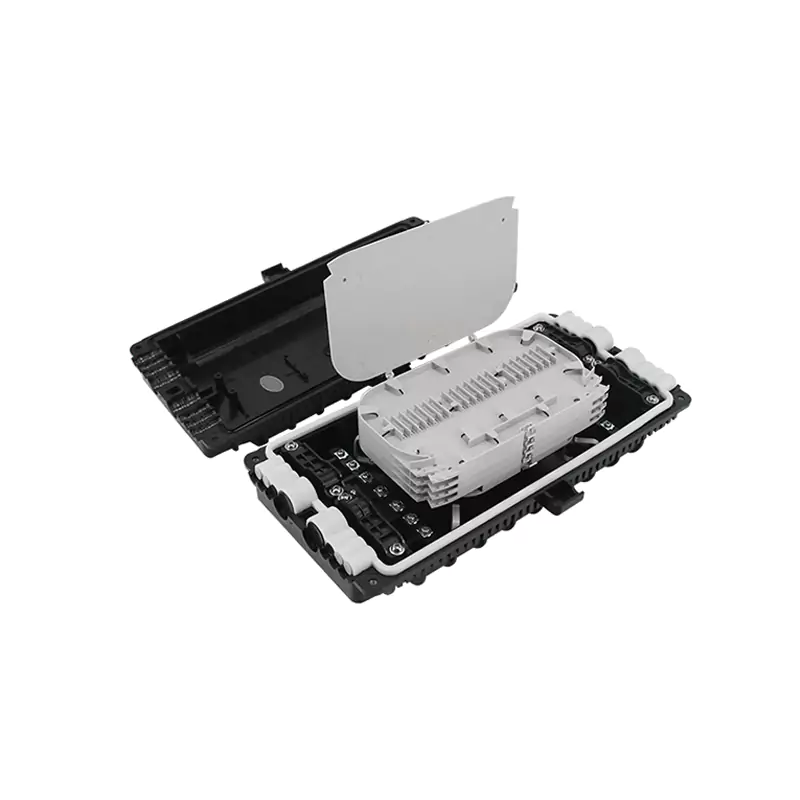

Optical Cable Joint Box, also known as Optical Cable Splicing Closure, is where the end of the optical cable is connected. It is connected to the optical switch through fiber jumpers, preventing material aging caused by heat, cold, light, oxygen and microorganisms in nature. It also has excellent mechanical strength. The sturdy shell and main structural components of the optical cable joint box can withstand the harshest environmental changes, and at the same time play a role in flame retardancy and waterproofing, protecting against vibration, impact, optical cable stretching, twisting, etc. It is suitable for straight-through and branch connections of various structural optical cables in overhead, pipeline, direct burial and other laying methods.
The box body is injection-molded with imported reinforced plastic added with anti-aging agents, and all external fasteners are made of stainless steel and copper materials;
The multi-inlet and multi-outlet design provides more solutions for network construction and future community network expansion;
The splicing tray adopts a stacked and flip-up structure, eliminating the need to disassemble other splicing trays during operation;
The unique sealing design ensures excellent airtightness and waterproof performance, and features a re-openable function;
Suitable for splicing of stranded optical cables and ribbon optical cables;
| Box Material | PP (Polypropylene) | Overall Dimensions (mm) | 410×255×110 | ||||||
| Sealing Material | Non-vulcanized Self-adhesive Rubber | Weight (kg) | |||||||
| Standard Accessories | |||||||||
| Serial No. | Name | Unit | Quantity | Serial No. | Name | Unit | Quantity | ||
| 1 | Box Body | Set | 1 | 7 | Baffle | Set | 1 | ||
| 2 | Sealing Component | Set | 1 | 8 | Cable Tie | Set | 1 | ||
| 3 | Wall-mounted Bracket | Set | 1 | 9 | Wet Wipe | Pack | 1 | ||
| 4 | Fusion Splicing Protection Tube | Piece/Tray | 24 | 10 | Special Wrench | Piece | 1 | ||
| 5 | Plug | Set | 1 | 11 | Fiber Protection Hose | Piece | 1 | ||
| 6 | Insulating Tape | Roll | 1 | ||||||
| Optional Accessories | |||||||||
| Serial No. | Name | Unit | Quantity | Serial No. | Name | Unit | Quantity | ||
| 1 | Air Nozzle | Set | 1 | 2 | Overhead Mounting Kit | Set | 1 | ||
| 3 | Grounding Assembly | Set | 1 | 4 | Pigtail | Piece | |||
