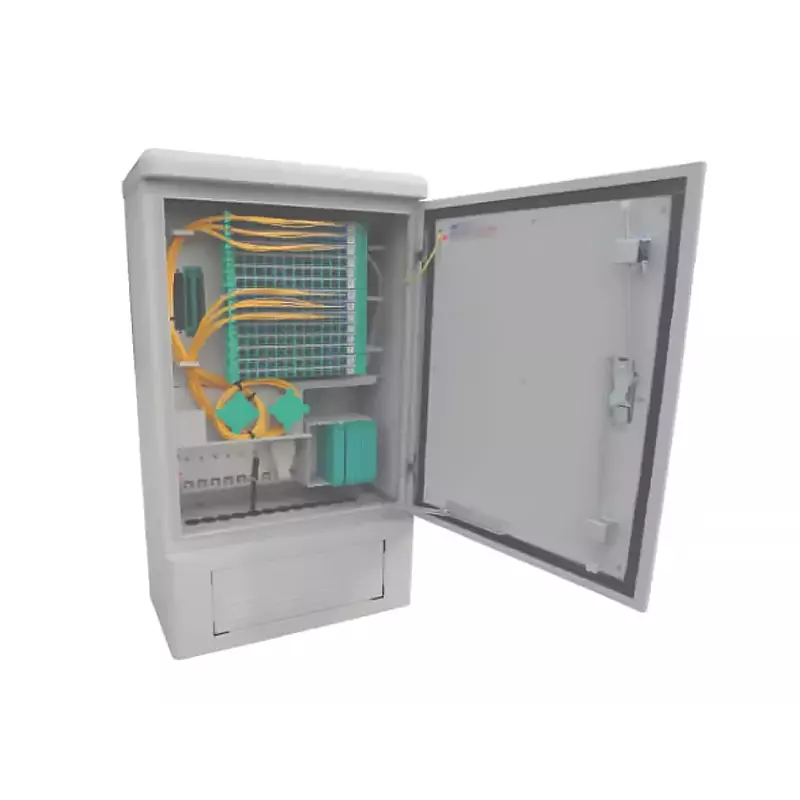

Jump-Free Optical Cable Cross-Connect Cabinet
Optical Cable Cross-Connect Cabinet is a junction device that provides cable termination and patching for backbone layer optical cables and distribution layer optical cables. After the optical cable is introduced into the optical cable cross-connect cabinet, it is fixed, terminated, and fiber-distributed, and then jumper fibers are used to connect the backbone layer optical cables and distribution layer optical cables.
Product Features
The cabinet is made of high-strength stainless steel, featuring high strength, anti-aging, corrosion resistance, and resistance to accidental or malicious damage;
It adopts a double-layer structure with high-performance thermal insulation material filled in between, which has excellent thermal insulation effect and can effectively prevent water vapor condensation inside the cabinet;
The cabinet door is equipped with a special sealed gasket, waterproof door lock and three-point door bolt locking, ensuring safety, reliability and good sealing performance;
Uses a 12-core integrated fusion splicing and distribution module;
FC and SC fiber optic adapters can be installed;
Equipped with reliable optical cable fixing and grounding protection devices;
Suitable for the termination of single-core and ribbon optical cables;
All corners of the cabinet are formed by special rounded corner molding dies, and the surface treatment adopts wire drawing (process).
Technical Parameters
| Cabinet Material | Stainless Steel Plate | Overall Dimensions (mm) | 1080×600×320 | ||||||
| Fiber Tray Capacity | 144 Cores | Weight (kg) | |||||||
| Standard Accessories | |||||||||
| Serial No. | Name | Unit | Quantity | Serial No. | Name | Unit | Quantity | ||
| 1 | Cabinet Body | Set | 1 | 6 | Optical Cable Fixing Device | Set | 1 | ||
| 2 | Nylon Cable Tie | Piece | 30 | 7 | Rubber Dust Ring | Piece | 10 | ||
| 3 | Expansion Bolt | Piece | 4 | 8 | |||||
| 4 | Fusion Splice Protection Sleeve | Piece | 144 | 9 | |||||
| 5 | 12-Core Integrated Tray | Piece | 12 | 10 | |||||
| Optional Accessories | |||||||||
| Serial No. | Name | Unit | Quantity | Serial No. | Name | Unit | Quantity | ||
| 1 | SC Pigtail | Piece | 12 | 3 | SC Adapter | Piece | 144 | ||
| 2 | FC Pigtail | Piece | 12 | 4 | FC Adapter | Piece | 144 | ||
