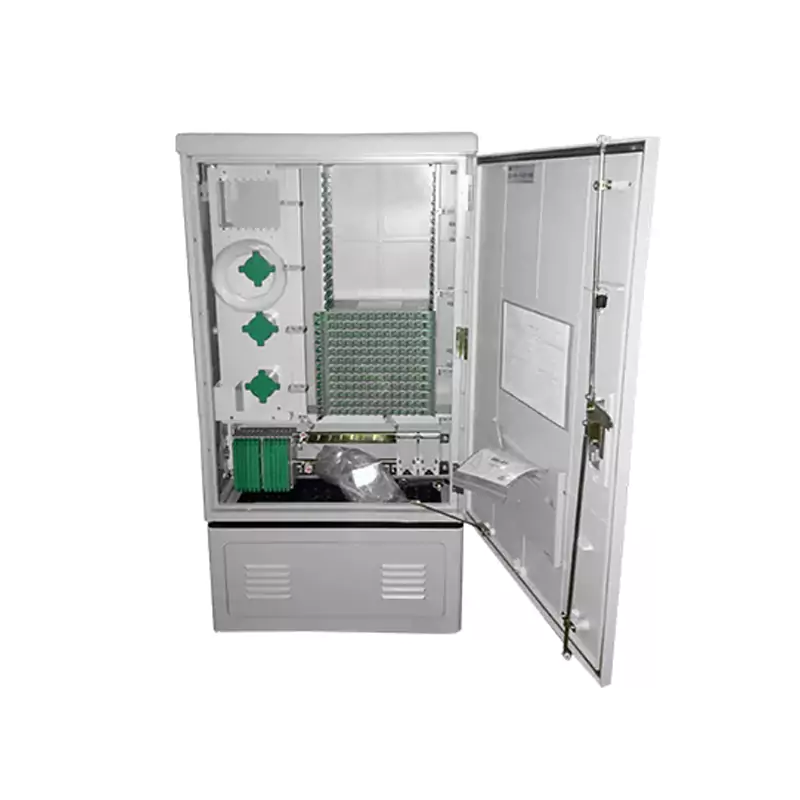

SMC Optical Cable Cross-Connect Cabinet
Optical Cable Cross-Connect Cabinet is a junction device that provides cable termination and patching for backbone layer optical cables and distribution layer optical cables. After the optical cable is introduced into the optical cable cross-connect cabinet, it is fixed, terminated, and fiber-distributed, and then jumper fibers are used to connect the backbone layer optical cables and distribution layer optical cables.
Product Features
The box body is made of high-strength international aerospace-grade SMC (glass fiber reinforced unsaturated polyester plastic) through high-temperature compression molding, boasting long service life, anti-aging and radiation resistance; no additional surface protection is needed, and it possesses all-weather protection capability;
The thick box body offers excellent heat insulation effect, which can effectively prevent water vapor condensation inside the box;
The box door adopts a special sealing gasket, waterproof door lock and three-point door pin locking mechanism, ensuring safety, reliability and superior sealing performance;
Equipped with a 12-core integrated fusion splicing and distribution module;
Capable of installing FC and SC fiber optic adapters;
Comes with reliable optical cable fixing and grounding protection devices;
Suitable for the termination of single-core and ribbon optical cables;
Technical Parameters
| Cabinet Material | SMC | Overall Dimensions (mm) | 1450-750-320 | ||||||
| Fiber Tray Capacity | 288 Cores | Weight (kg) | |||||||
| Standard Accessories | |||||||||
| Serial No. | Name | Unit | Quantity | Serial No. | Name | Unit | Quantity | ||
| 1 | Cabinet | Set | 1 | 6 | Optical Cable Fixing | Set | 1 | ||
| 2 | Nylon Cable Tie | Piece | 30 | 7 | Rubber Dust Ring | Piece | 10 | ||
| 3 | Expansion Bolt | Piece | 4 | 8 | |||||
| 4 | Fusion Splicing Protection Tube | Piece | 288 | 9 | |||||
| 5 | 12-Core Integrated Tray | Piece | 24 | 10 | |||||
| Optional Accessories | |||||||||
| Serial No. | Name | Unit | Quantity | Serial No. | Name | Unit | Quantity | ||
| 1 | SC Pigtail | Piece | 24 | 3 | SC Adapter | Piece | 288 | ||
| 2 | FC Pigtail | Piece | 24 | 4 | FC Adapter | Piece | 288 | ||
