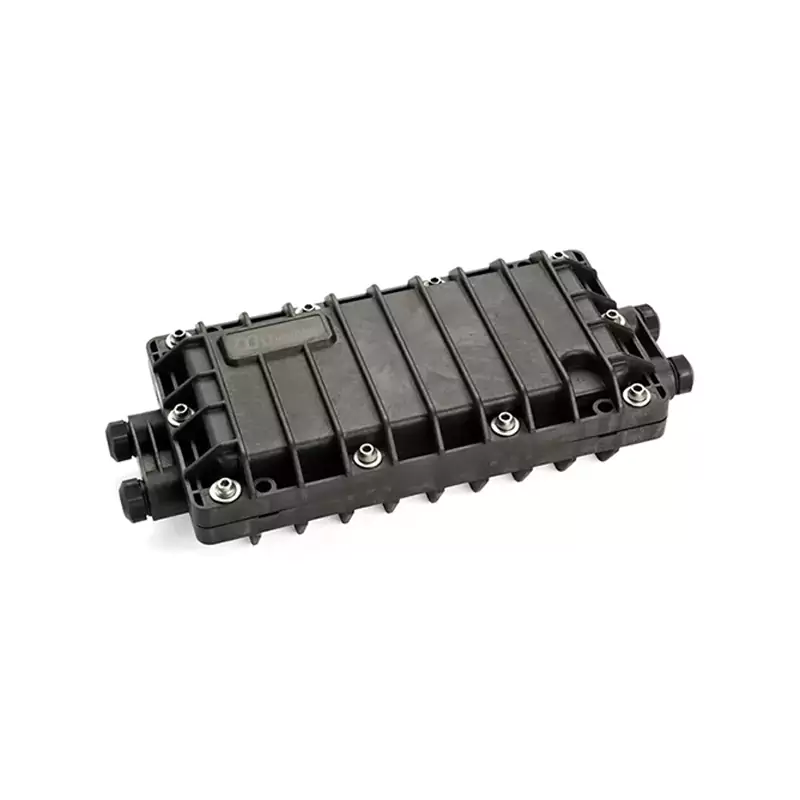

Optical Cable Joint Box, also known as Optical Cable Splicing Closure, is where the end of the optical cable is connected. It is connected to the optical switch through fiber jumpers, preventing material aging caused by heat, cold, light, oxygen and microorganisms in nature. It also has excellent mechanical strength. The sturdy shell and main structural components of the optical cable joint box can withstand the harshest environmental changes, and at the same time play a role in flame retardancy and waterproofing, protecting against vibration, impact, optical cable stretching, twisting, etc. It is suitable for straight-through and branch connections of various structural optical cables in overhead, pipeline, direct burial and other laying methods.
The splice closure has a total of 4 cable ports, with two inlets and two outlets; it can meet the sealing needs of Φ10~18 optical cables;
Supports 3 24-core splicing trays, with a maximum single-core capacity of 72 cores;
The box adopts mechanical sealing with excellent sealing performance; Protection Class: IP68;
Installation Methods: Overhead installation, pipeline installation;
The optical cable fixing plate and the steel core strength member fixing device adopt an integrated design, reducing space and increasing fiber storage capacity;
The optical cable is sealed by nut compression, featuring a wide applicable range of optical cables and meeting sealing requirements;
| Box Material | Polymer Modified Plastic | Overall Dimensions (mm) | 474×200×105 | ||||||
| Sealing Material | Non-vulcanized Self-adhesive Rubber | Weight (kg) | 2.3-2.8 | ||||||
| Standard Accessories | |||||||||
| Serial No. | Name | Unit | Quantity | Serial No. | Name | Unit | Quantity | ||
| 1 | Box Body | Set | 1 | 7 | Baffle | Set | 1 | ||
| 2 | Sealing Component | Set | 1 | 8 | Cable Tie | Set | 1 | ||
| 3 | Wall-mounted Bracket | Set | 1 | 9 | Wet Wipe | Pack | 1 | ||
| 4 | Fusion Splicing Protection Tube | Piece/Tray | 24 | 10 | Special Wrench | Piece | 1 | ||
| 5 | Plug | Set | 1 | 11 | Fiber Protection Hose | Piece | 1 | ||
| 6 | Insulating Tape | Roll | 1 | ||||||
| Optional Accessories | |||||||||
| Serial No. | Name | Unit | Quantity | Serial No. | Name | Unit | Quantity | ||
| 1 | Air Nozzle | Set | 1 | 2 | Overhead Mounting Kit | Set | 1 | ||
