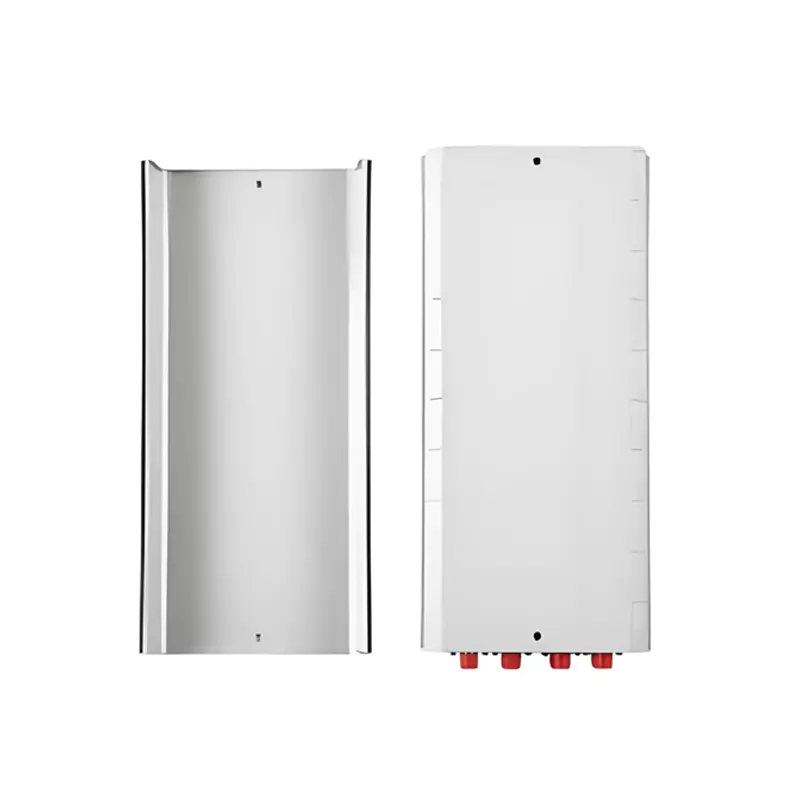

Optical Cable Termination Box series products are auxiliary equipment for terminal distribution in optical fiber transmission communication networks. They are suitable for direct and branch splicing of indoor or outdoor optical cables and protect optical fiber joints. Optical Cable Termination Boxes are mainly used for fixing optical cable terminations, fusion splicing of optical cables and pigtails, and storage and protection of residual fibers.
Suitable for termination splicing and distribution of single-core and ribbon optical fibers;
Adopts an original optical cable introduction and fixing structure, featuring simple operation, and can be installed indoors or on the wall of equipment rooms;
Used for splicing and distribution between indoor/outdoor optical cables and pigtails of switching equipment;
Capable of installing SC and FC adapters as well as pigtails, with a maximum distribution capacity of 12 cores;
Can meet the termination splicing needs of Φ8～18 optical cables;
| Box Material | ABS | Overall Dimensions (mm) | 285×130×50 | ||||||
| Fiber Tray Capacity | 12 Cores | Weight (kg) | |||||||
| Standard Accessories | |||||||||
| Serial No. | Name | Unit | Quantity | Serial No. | Name | Unit | Quantity | ||
| 1 | Box Body | Set | 1 | 6 | Fusion Splicing Protection Tube | Piece | 24 | ||
| 2 | Nylon Cable Tie | Piece | 4 | 7 | Optical Cable Fixing Device | Set | 1 | ||
| 3 | Self-tapping Screw | Piece | 4 | 8 | Rubber Dust Ring | Set | 2 | ||
| 4 | Plastic Expansion Tube | Piece | 4 | 9 | Piece | ||||
| 5 | Fiber Tray (Including Cover Plate) | Sheet | 2 | 10 | Set | ||||
| Optional Accessories | |||||||||
| Serial No. | Name | Unit | Quantity | Serial No. | Name | Unit | Quantity | ||
| 1 | SC Pigtail | Strip | As Required | 3 | Adapter | Piece | As Required | ||
| 2 | FC Pigtail | Strip | As Required | 4 | Adapter Fixing Plate | Sheet | 1 | ||
