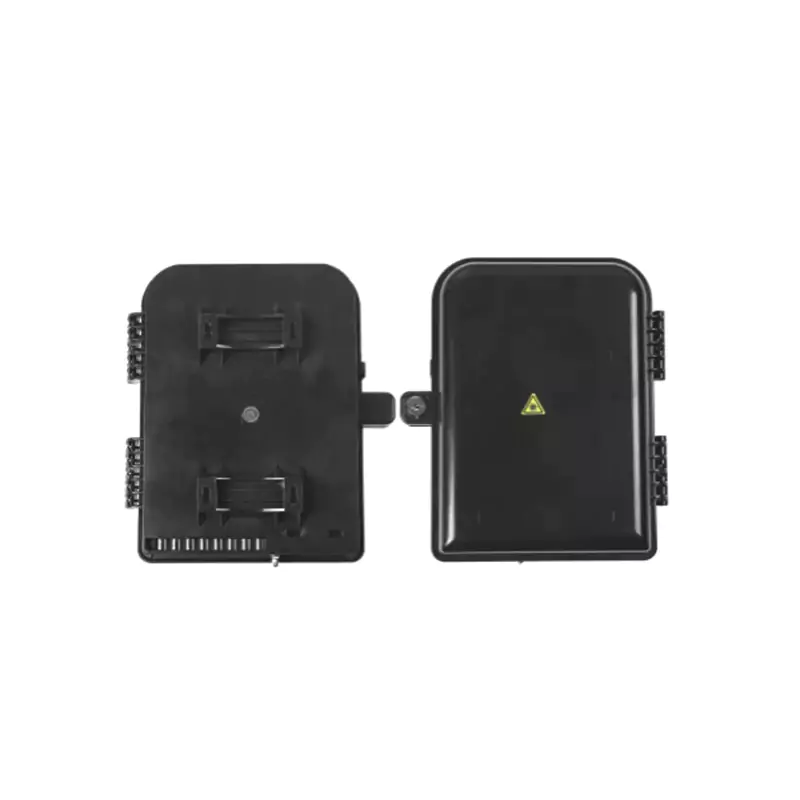

16-Core Plastic Optical Splitter Box
16-core Plastic Optical Splitter Box HJ-GFS-KSW-16C adopts a separate fusion-splicing and distribution structure, with fusion splicing and optical distribution functions.
Product Features
Meets the requirements for distribution and protection of 2 optical cables (Φ8~12mm) and terminal distribution of 2 plug-in type optical splitters (along with distribution pigtails or drop cables);
Protection Class: IP55;
Optical Splitter: Capable of installing plug-in type optical splitters (1:4, 1:8, 1:16);
Equipped with a reliable fixing device for optical cables and drop cables;

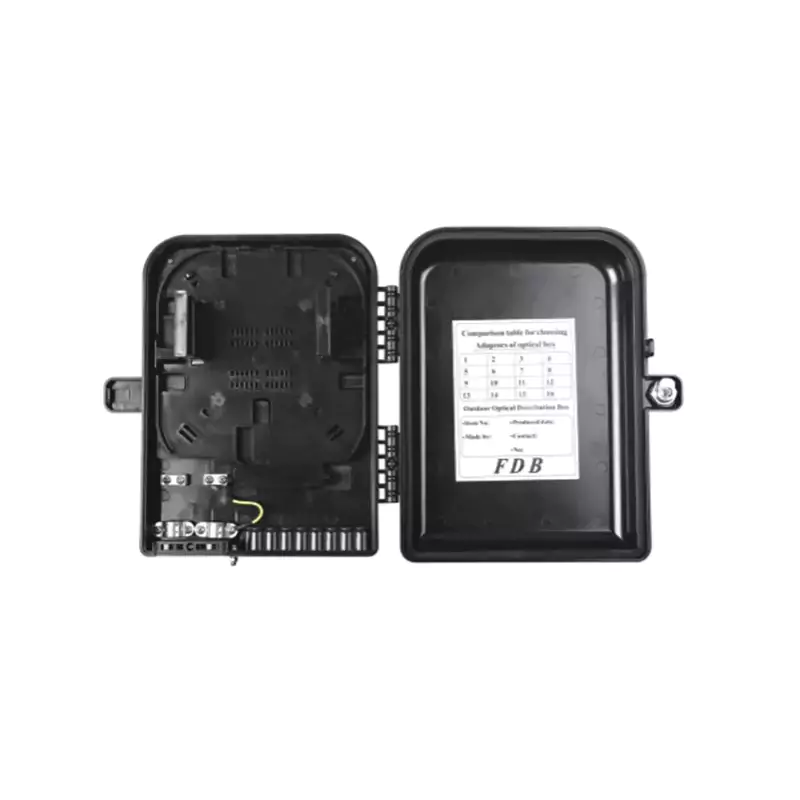

The fiber distribution box adopts a hinged flap structure, enabling convenient and quick fiber fusion splicing and termination operations;
The box body adopts a sealed structure, supplemented by an optional mechanical lock for fixation, making the box easy to open and close;
Built-in fiber fusion protection device and fiber adapter fixing device;
Technical Parameters
| Model | Product Dimensions | Weight | Material | Cable Entry Holes |
| HJ-GFS-KSW-16C | 220*3000*90mm | 1.65kg | PC+ABS Plastic | 2 Inlets & 24 Outlets |
| Product Configuration List | |||||
| Serial No. | Name | Specification | Quantity | Unit | Remarks |
| 1 | Cabinet Body | 220*3000*90mm | 1 | Set | Including internal structural components |
| 2 | Splitter Bracket | Flip-type | 1 | Set | 1 slot reserved |
| 3 | Optical Splitter | Plug-in type SC | * | Set | Optional accessory (1:4, 1:8, 1:16), Maximum quantity: 2 slots |
| 4 | Pigtail | Single-core SC | * | Piece | Optional (0.9mm pigtail, 2.0mm pigtail, drop cable optional) |
| 5 | Heat Shrinkable Tube | Single-core heat shrinkable tube | 8 | Piece | |
| 6 | Fiber Protection Sleeve | 0.5 | Meter | ||
| 7 | Accessories | Installation accessories | 1 | Set | Standard configuration |
