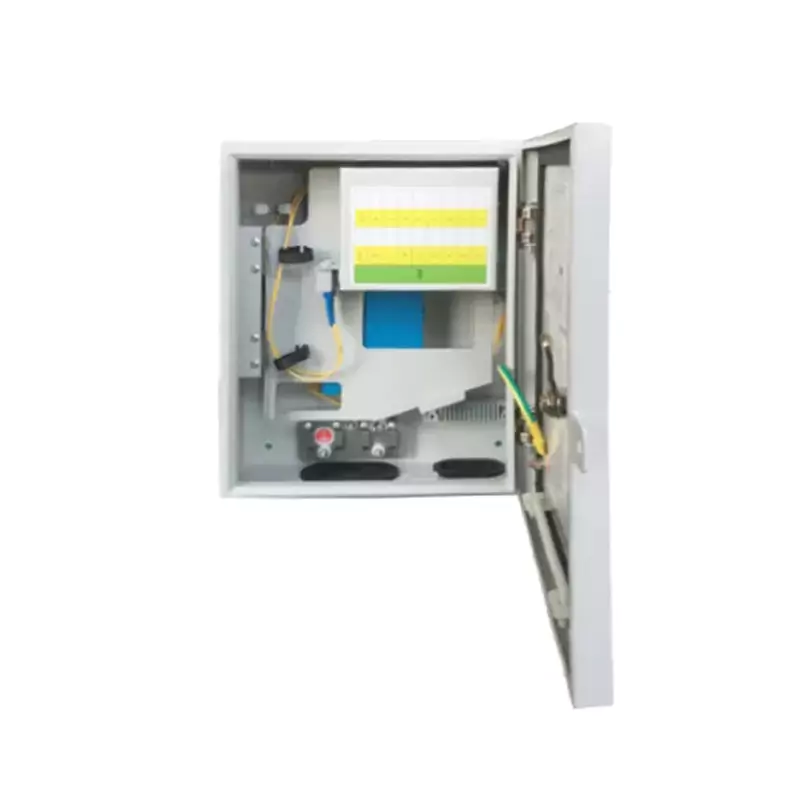

16-core Metal Optical Splitter Box HJ-GFS-KJW-16C adopts a separate fusion-splicing and distribution structure, with fusion splicing and optical distribution functions.
Meets the requirements for distribution and protection of 1~2 optical cables (Φ8~15mm) and terminal distribution of 2 plug-in type optical splitters (along with distribution pigtails or drop cables);
Adopts a sheet metal structure, made of galvanized sheet (stainless steel optional) with a thickness of 0.8~1.2mm; Protection Class: IP55;
Optical Splitter: Capable of installing plug-in type optical splitters (1:4, 1:8, 1:16); Maximum core count: 16 cores;
Equipped with a reliable fixing device for optical cables and drop cables;
A fiber parking position device and a cable pulling device can be installed inside the cabinet;

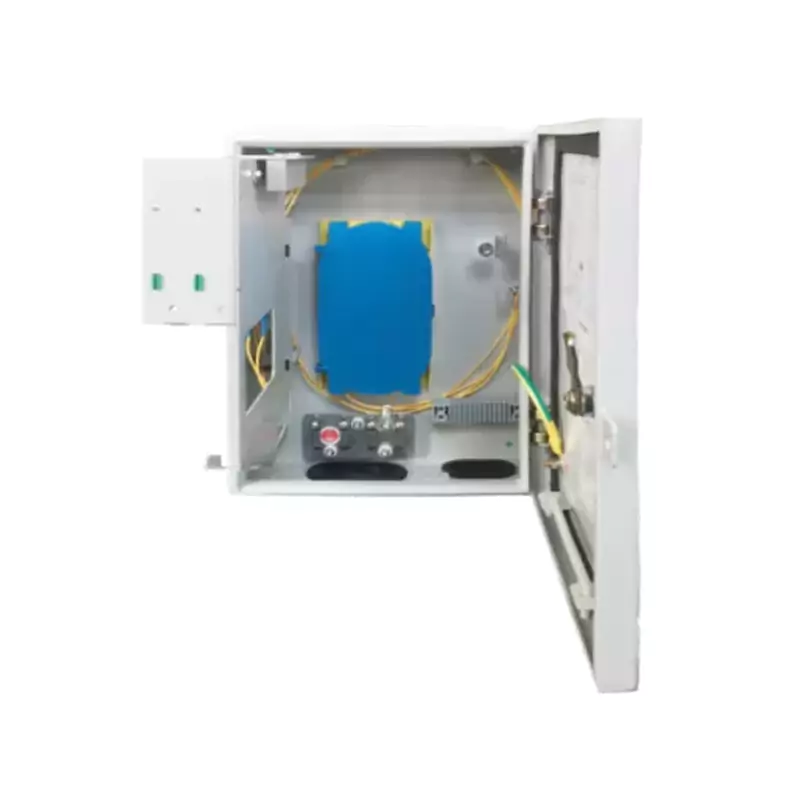

The fiber distribution box adopts a hinged flap structure, enabling convenient and quick fiber fusion splicing and termination operations;
The box body adopts a sealed structure, supplemented by an optional mechanical lock for fixation, and the box is easy to open and close;
| Model | Product Dimensions | Weight | Material | Cable Entry Holes |
| HJ-GFS-KJW-16C | 380*420*100mm | 2.7~4.2kg | Galvanized Steel Plate 1.0~1.2mm | 2 Inlets & 2 Holes |
| Product Configuration List | |||||
| Serial No. | Name | Specification | Quantity | Unit | Remarks |
| 1 | Cabinet Body | 380*420*100mm | 1 | Set | Including internal structural components |
| 2 | Splitter Bracket | Flip-type | 1 | Set | 2 slots reserved |
| 3 | Optical Splitter | Plug-in type SC | * | Set | Optional accessory (1:4, 1:8, 1:16) Maximum quantity: 2 slots |
| 4 | Pigtail | Single-core SC | * | Piece | Optional (0.9mm pigtail, 2.0mm pigtail, drop cable optional) |
| 5 | Fiber Splicing Tray Device | 12-core | 1 | Block | Maximum 2 blocks can be configured |
| 6 | Heat Shrinkable Tube | Single-core heat shrinkable tube | 12 | Piece | |
| 7 | Fiber Protection Sleeve | 1 | Meter | ||
| 8 | Accessories | Installation accessories | 1 | Set | Standard configuration |
