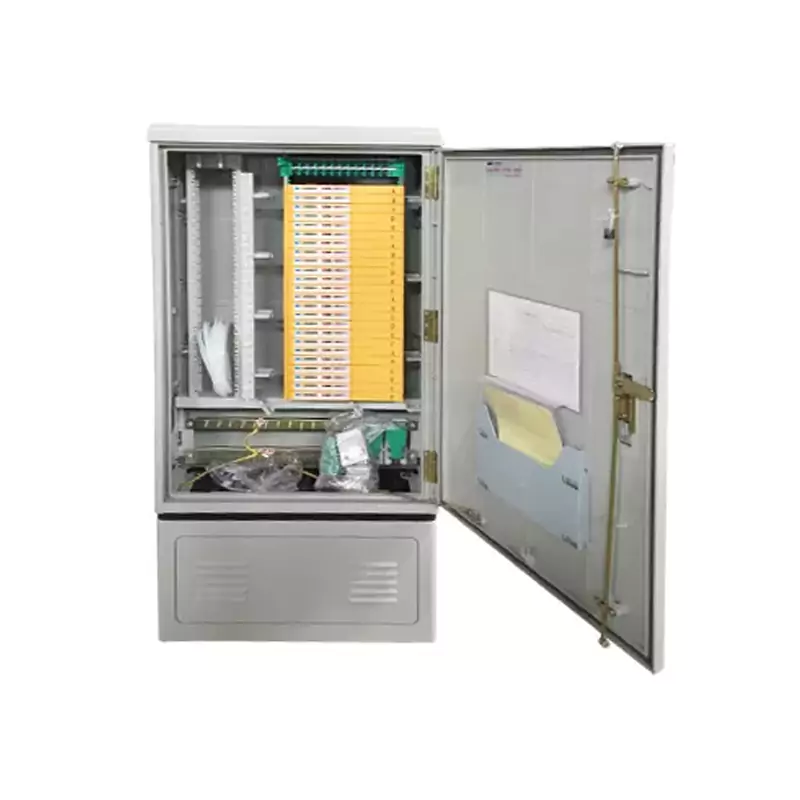

Plug-In Type Jump-Free Optical Cross-Connect Cabinet
Optical Cable Cross-Connect Cabinet is a junction device that provides cable termination and patching for backbone layer optical cables and distribution layer optical cables. After the optical cable is introduced into the optical cable cross-connect cabinet, it is fixed, terminated, and fiber-distributed, and then jumper fibers are used to connect the backbone layer optical cables and distribution layer optical cables.
Product Features
The box body is made of high-strength international aerospace-grade SMC (glass fiber reinforced unsaturated polyester plastic) via high-temperature compression molding, featuring long service life, anti-aging and radiation resistance; no additional surface protection is required, and it has all-weather protection performance;
The thick box body provides excellent heat insulation effect, which can effectively prevent water vapor condensation inside the box;
The box door adopts a special sealing gasket, waterproof door lock and three-point door pin locking, ensuring safety, reliability and good sealing performance;
Capable of installing FC and SC fiber optic adapters;
Equipped with reliable optical cable fixing and grounding protection devices;
Suitable for the termination of single-core and ribbon optical cables;
Technical Parameters
| Parameter Name | Index Requirement | Remarks/Conditions |
| Operating Temperature | -40℃ ～ +60℃ | |
| Storage Temperature | -40℃ ～ +60℃ | |
| Relative Humidity | ≤ 95% | At +40℃ |
| Atmospheric Pressure | 70 kPa ～ 106 kPa | |
| Connector Attenuation | ≤ 0.3 dB | (Insertion, Interchangeability, Repeatability) |
| Return Loss | ≥ 50 dB | |
| Plugging Durability Life | > 1000 Cycles | |
| Insulation Resistance Between High-Voltage Protective Ground and Cabinet | > 1000 MΩ | Test Condition: 500V DC |
| Withstand Voltage Between High-Voltage Protective Ground and Cabinet | > 3000 V DC / 1 min | No breakdown, no arcing |
| Cabinet Material | SMC | Overall Dimensions (mm) | 1450×750×320 | ||||||
| Fiber Tray Capacity | 288 Cores | Weight (kg) | |||||||
| Standard Accessories | |||||||||
| Serial No. | Name | Unit | Quantity | Serial No. | Name | Unit | Quantity | ||
| 1 | Cabinet | Set | 1 | 6 | Optical Cable Fixing | Set | 1 | ||
| 2 | Nylon Cable Tie | Piece | 30 | 7 | Rubber Dust Ring | Piece | 10 | ||
| 3 | Expansion Bolt | Piece | 4 | 8 | |||||
| 4 | Fusion Splicing Protection Tube | Piece | 288 | 9 | |||||
| 5 | 12-Core Integrated Tray | Piece | 26 | 10 | |||||
| Optional Accessories | |||||||||
| Serial No. | Name | Unit | Quantity | Serial No. | Name | Unit | Quantity | ||
| 1 | SC Pigtail | Piece | 26 | 3 | SC Adapter | Piece | 24 | ||
| 2 | FC Pigtail | Piece | 26 | 4 | FC Adapter | Piece | 24 | ||
