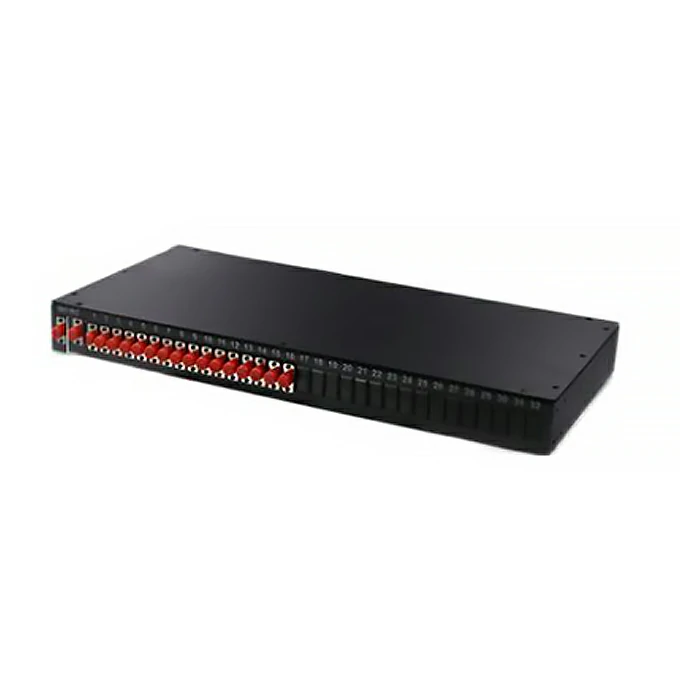

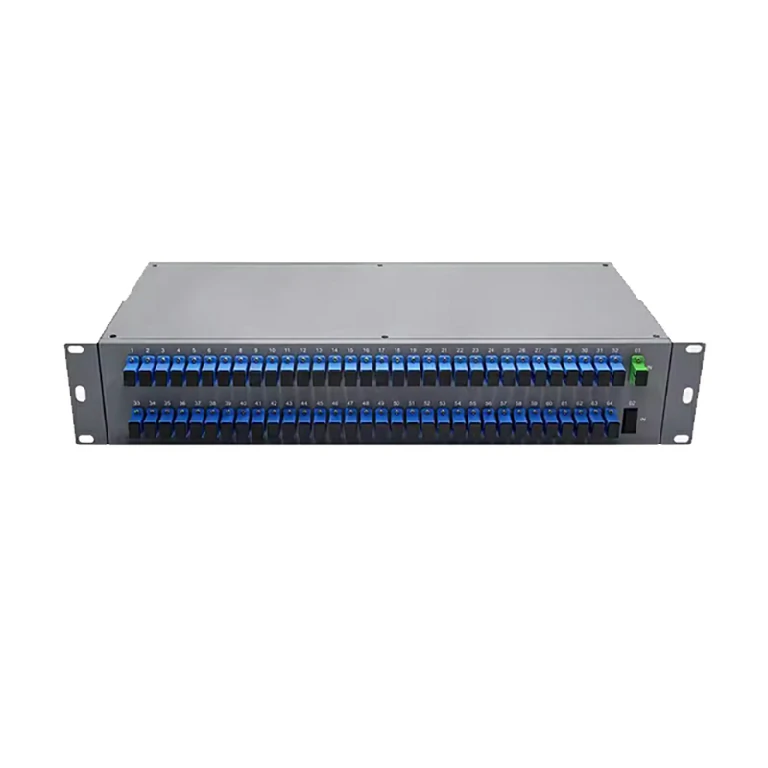

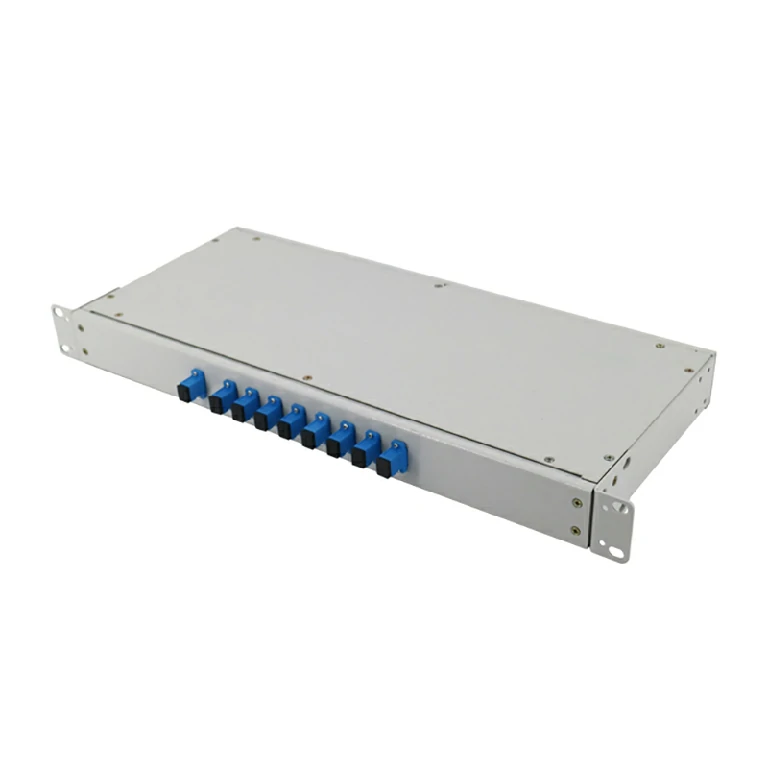

Subrack-Type Optical Splitter Series
Subrack-type optical splitter is suitable for 19-inch standard rack installation, with a height of 1U and specific dimensions of (483mm×200mm×43.5mm). The product is composed of three main parts: 19-inch standard chassis, box-type splitter (with connectors), and standard flange.
Product Features
Mainly used for direct installation on 19-inch standard racks to distribute optical signals in optical fibers and cables
The product features easy installation, convenient use, impact resistance, wear resistance, etc.
Rack Material: Magnesium-Aluminum-Zinc Coated Steel Plate
Splitter Inner Box: ABS, Miniature
FC Connector and FC Adapter: HPb59-1 Copper Material
SC Adapter and SC Connector Material: PBT Plastic
LC Adapter and LC Connector Material: PBT Plastic
Ferrule and Adapter Sleeve Material: High-Precision Ceramic Material
Technical Parameters
Optical Characteristics of 1×N (N ＞ 2) PLC Optical Splitter (Including Connectors)
| Parameters | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | ||
| 1 | Operating Bandwidth (nm) | 1260 － 1650 | |||||
| 2 | Insertion Loss (dB) | Maximum | 7.4 | 10.5 | 13.8 | 17.1 | 20.4 |
| 3 | Polarization Dependent Loss (PDL) (dB) | Maximum | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| 4 | Return Loss (RL) (dB) | Minimum | 45 (PC); 50 (UPC); 55 (APC) | ||||
| 5 | Splitting Uniformity (dB) | Maximum | 0.7 | 0.8 | 1.0 | 1.5 | 2.0 |
| 6 | Directivity (dB) | Minimum | 55 | 55 | 55 | 55 | 55 |
Notes: 1. Applicable to uniform devices;
2. All parameters are tested including connectors, under the condition of λ=1310/1550nm.
3. The test wavelengths for splitting uniformity are 1310nm, 1490nm, and 1550nm. For the wavelength ranges of 1260nm-1300nm and 1600nm-1650nm, the splitting uniformity index is increased by 0.5dB on the basis of the above indicators.
Optical Characteristics of 2×N (N ＞ 2) PLC Optical Splitter (Including Connectors)
| Parameters | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | ||
| 1 | Operating Bandwidth (nm) | 1260 － 1650 | |||||
| 2 | Insertion Loss (dB) | Maximum | 7.7 | 10.8 | 14.1 | 17.4 | 20.6 |
| 3 | Polarization Dependent Loss (PDL) (dB) | Maximum | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| 4 | Return Loss (RL) (dB) | Minimum | 45 (PC); 50 (UPC); 55 (APC) | ||||
| 5 | Splitting Uniformity (dB) | Maximum | 0.7 | 0.8 | 1.0 | 1.5 | 2.0 |
| 6 | Directivity (dB) | Minimum | 55 | 55 | 55 | 55 | 55 |
Notes: 1. Applicable to uniform devices;
2. All parameters are tested including connectors, under the condition of λ=1310/1550nm.
3. The test wavelengths for splitting uniformity are 1310nm, 1490nm, and 1550nm. For the wavelength ranges of 1260nm-1300nm and 1600nm-1650nm, the splitting uniformity index is increased by 0.5dB on the basis of the above indicators.
