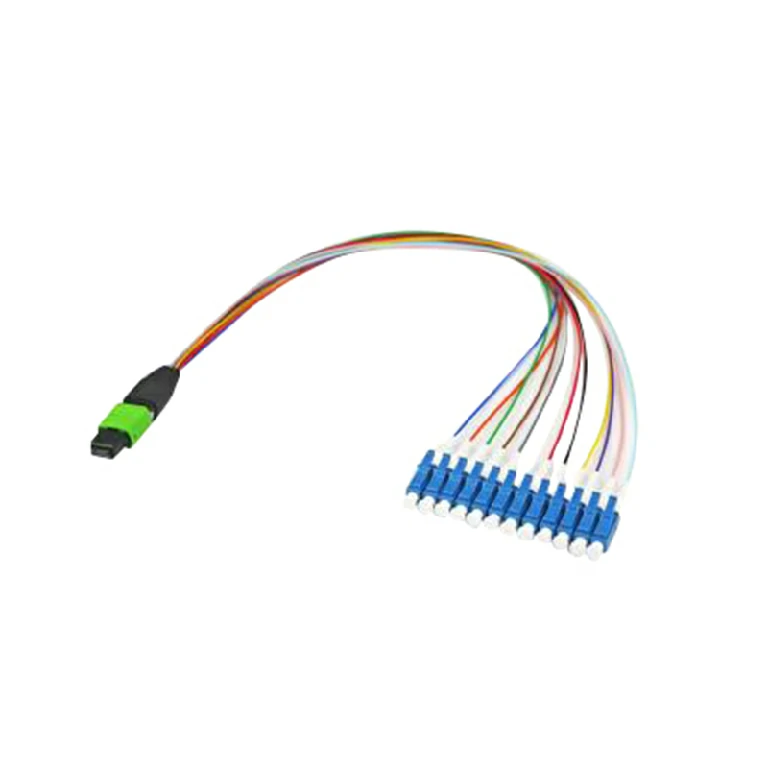

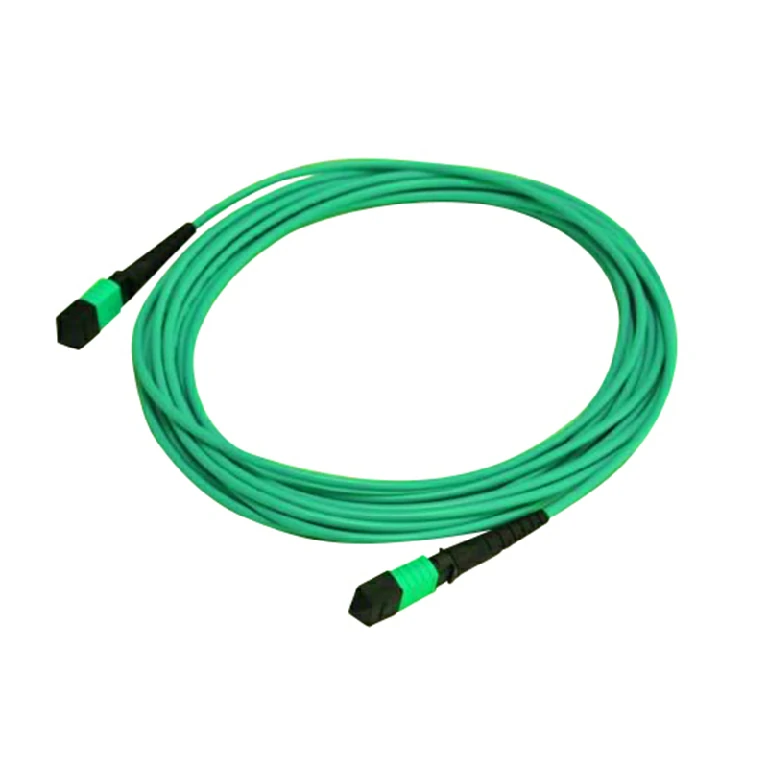

MPO Series Fiber Optic Connectors
MPO connector is a type of fiber optic connector, a multi-core fiber optic connector type; It is often used as a connector type for high-speed transmission standards, such as the IEEE 802.3bm standard for 40G/100G transmission. At present, MPO high-density fiber pre-connection system is mainly used in three major fields: applications in high-density environments of data centers, applications of fiber to the building, and internal connections of optical splitters, 40G, 100G, QSFP+ and other optical transceivers.
Product Features
Sheath Material: LSZH
High tensile strength
High-strength DuPont aramid fiber
Compatible with connectors of different structures as per customer-specific requirements
Adopts ferrules with high concentricity, featuring good interoperability and consistency
Technical Parameters
| MPO Connector | Standard Loss Single-Mode Connector | Low Loss Single-Mode Connector | Standard Loss Multi-Mode Connector | Low Loss Multi-Mode Connector | |||
| Ferrule Endface Type | APC | UPC | APC | UPC | UPC | UPC | |
| Insertion Loss (dB) | Typical | 0.35 | 0.35 | 0.25 | 0.25 | 0.5 | 0.35 |
| Maximum | 0.5 | 0.5 | 0.35 | 0.35 | 0.7 | 0.5 | |
| Return Loss (dB) | 60 | 50 | 60 | 50 | 20 | 20 | |
| Interchangeability (dB) | ≤ 0.3 | ||||||
| Durability (dB) | ≤ 0.2 | ||||||
| Tensile Strength (N) | ≥ 50 | ||||||
| Operating Temperature (℃) | -20~+60 | ||||||
| Operating Humidity (%) | 5~95 (non-condensing) | ||||||
