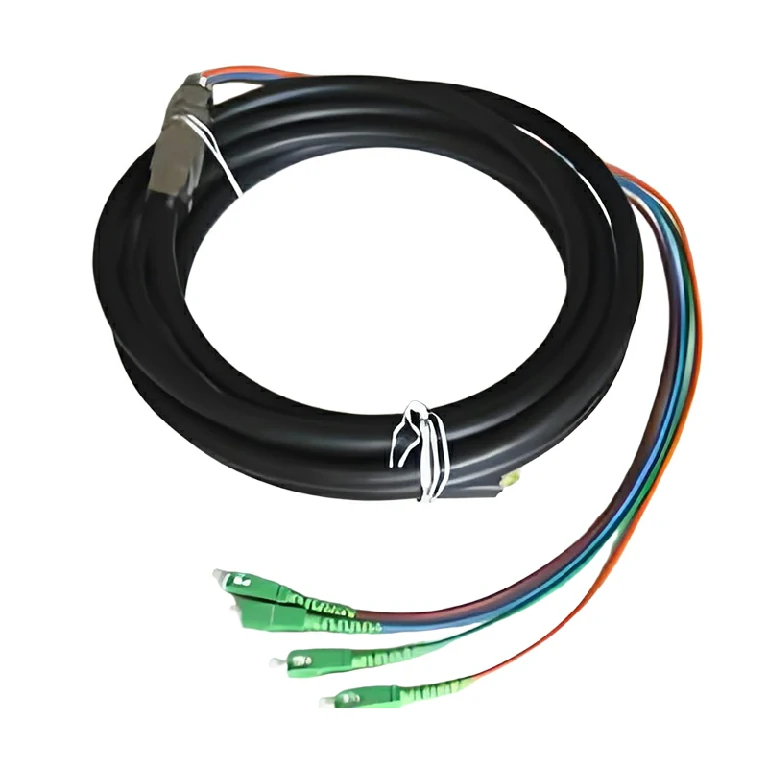

Outdoor Waterproof Pigtail Series Fiber Optic Connectors
It is a special indoor optical cable manufactured with single-core optical cable as the basic component. 2-12 single-core optical cables in the cable are arranged clockwise in a circle around the non-metallic central strength member. The outside can be wrapped with water-blocking yarn, reinforced and sealed with aluminum tape as the metal armor layer, and sheathed with suitable materials.
Product Features
Reliable performance and good versatility;
Tensile and corrosion-resistant, suitable for harsh outdoor environments;
Easy construction and high safety; the optical cable and pigtail will not rotate when tightening the connector nut;
Low insertion loss and high return loss;
Enables active connection of optical fiber transmission;
Technical Parameters
| Model Specification | Optical Cable Outer Diameter (mm) | Central Strength Member | Crushing Force (N/100mm) | Tensile Force (N) | Minimum Bending Radius | Weight (kg/km) | Operating Temperature (℃) | |||
| Short-Term | Long-Term | Short-Term | Long-Term | Dynamic | Static | |||||
| GYFTA (1+4-3.0) | 11.7 | 1.2mm Steel Wire | 1000 | 300 | 1040 | 690 | 20D | 10D | 95 | -20~60 |
| GYFTA (1+6-2.0) | 11.7 | 1.5mm FRP/2.1mm | 1000 | 300 | 530 | 350 | 20D | 10D | 80 | -20~60 |
| GYFTA (1+8-2.0) | 11.7 | 1.5mm FRP/3.3mm | 1000 | 300 | 620 | 410 | 20D | 10D | 93 | -20~60 |
| GYFTA (1+4-2.0) | 10 | 1.0mm Steel Wire | 1000 | 300 | 620 | 410 | 20D | 10D | 72 | -20~60 |
| Fiber Type | 62.5um (850/1300nm) | 50um (850/1300nm) | Single-Mode Fiber (SMF) (1310/1550nm) |
| Maximum Attenuation (dB/Km) | 3.75/1.5 | 3.5/1.5 | 0.75/0.5 |
| Typical Attenuation (dB/Km) | 3.5/1.5 | 3.0/1.0 | 0.4/0.3 |
| Minimum LED Bandwidth (MHz.km) | 160/500 | 400/800 | - |
Solutions
We provide professional optical fiber communication solutions tailored to different industries and application scenarios.
FTTN (Fiber to the Node)
The FTTN (Fiber to the Node) solution involves laying optical fibers to node cabinets several miles away from users, then transmitting network signals to user terminals via traditional copper cables. It is an ideal choice for meeting the broadband upgrade needs of urban areas or communities, and is suitable for access requirements in small and medium-sized regions.
Application
Urban and Peri-Urban Areas
Major Residential Areas and Communities
FTTC (Fiber to the Curb)
FTTB (Fiber to the Building)
FTTH (Fiber to the Home)
FTTP (Fiber to the Premises)
Adapts to Multi-user Needs
For large buildings, providing fiber access throughout the entire building
Highly Reliable
Provides stable high-speed internet connections, meeting high-demand commercial and residential usage
Highly Scalable
Supports future expansion and flexible service distribution
Ultimate Access Speed
Fiber reaches the curb, closer to users, providing higher bandwidth and lower latency
Flexible Deployment
Adapts to flexible cabling needs in urban and densely populated areas
High Bandwidth Guarantee
Through fiber network connections, meeting high-bandwidth application needs such as HD video and cloud computing
Meet Diverse User Needs
Tailor full-building fiber access solutions for large-scale constructions
High Reliability
Deliver stable, high-speed internet connectivity to meet the demands of high-performance commercial and residential use.
Strong Scalability
Support future expansion and flexible service allocation
Ultra-high-speed Internet
Direct access to fiber networks, achieving gigabit-level bandwidth, supporting bandwidth-intensive applications such as HD, 4K video, VR/AR
High Stability
No electromagnetic interference, fiber connections ensure communication stability
Future Scalability
As demand grows, fiber networks can seamlessly expand to meet increasing bandwidth needs
Wide Coverage
Integrating FTTH and FTTB solutions to meet the needs of various customers including homes and enterprises
High Bandwidth Guarantee
Provides excellent network experience, supporting cloud applications, high-volume video transmission, etc.
One-stop Service
Comprehensively considers user scenarios, provides flexible fiber deployment solutions, ensuring seamless connectivity
